Agitating leaching tank

-200#80%

Material fineness

6—342m³

Effective volume

Applicable materials: Gold leaching, adsorption and other mixing operations with small specific gravity, low viscosity, slow settling velocity, ore particle size of -200 mesh accounts for more than 90%, and pulp concentration less than 45%.

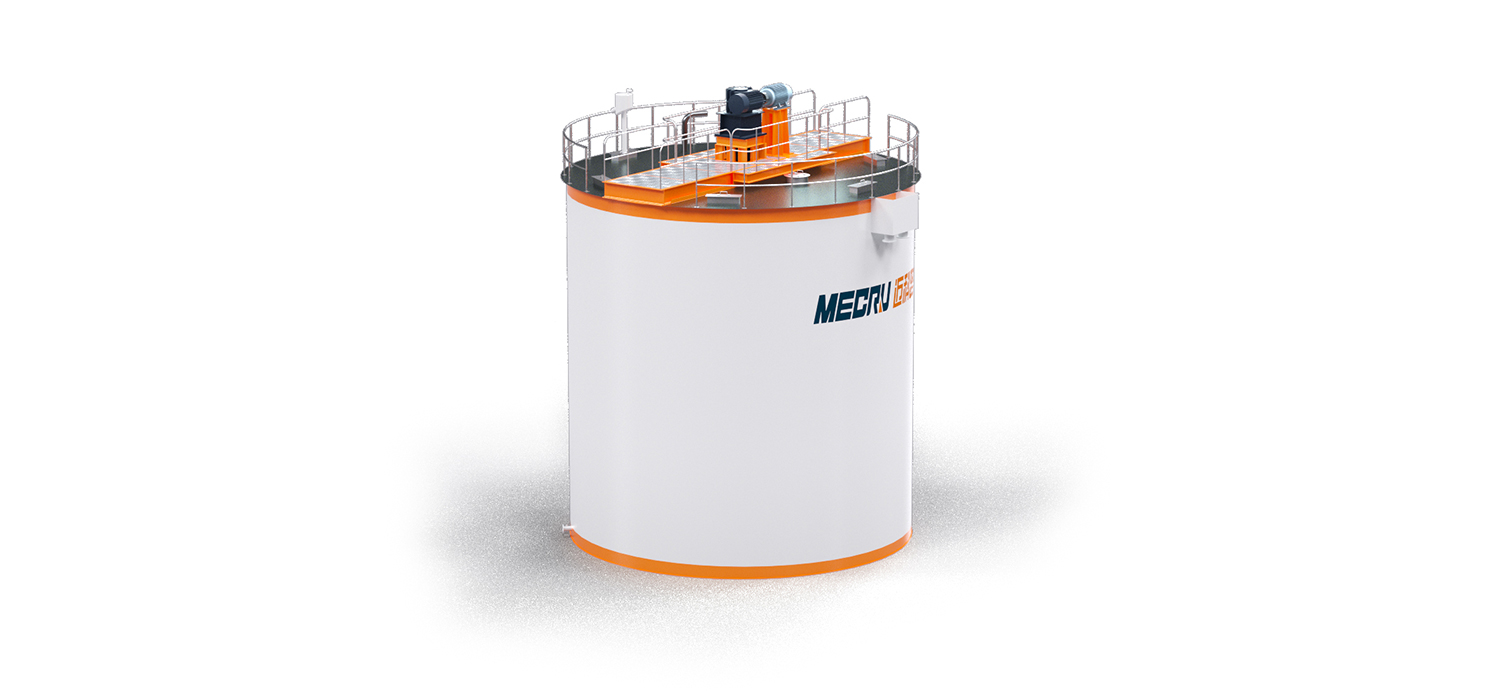

Agitating leaching tank

Product profile

Compared with ordinary agitation tanks, the Mecru double-impeller agitating leaching tank uses double-layer impellers, which can make the agitated pulp more uniform. In terms of energy consumption, it is more energy-saving. The impeller adopts The latest is the rubber-covering technology, which has a longer service life. In the aspect of air supply, it adopts a multi-directional air supply scheme, and the air is evenly inflated.

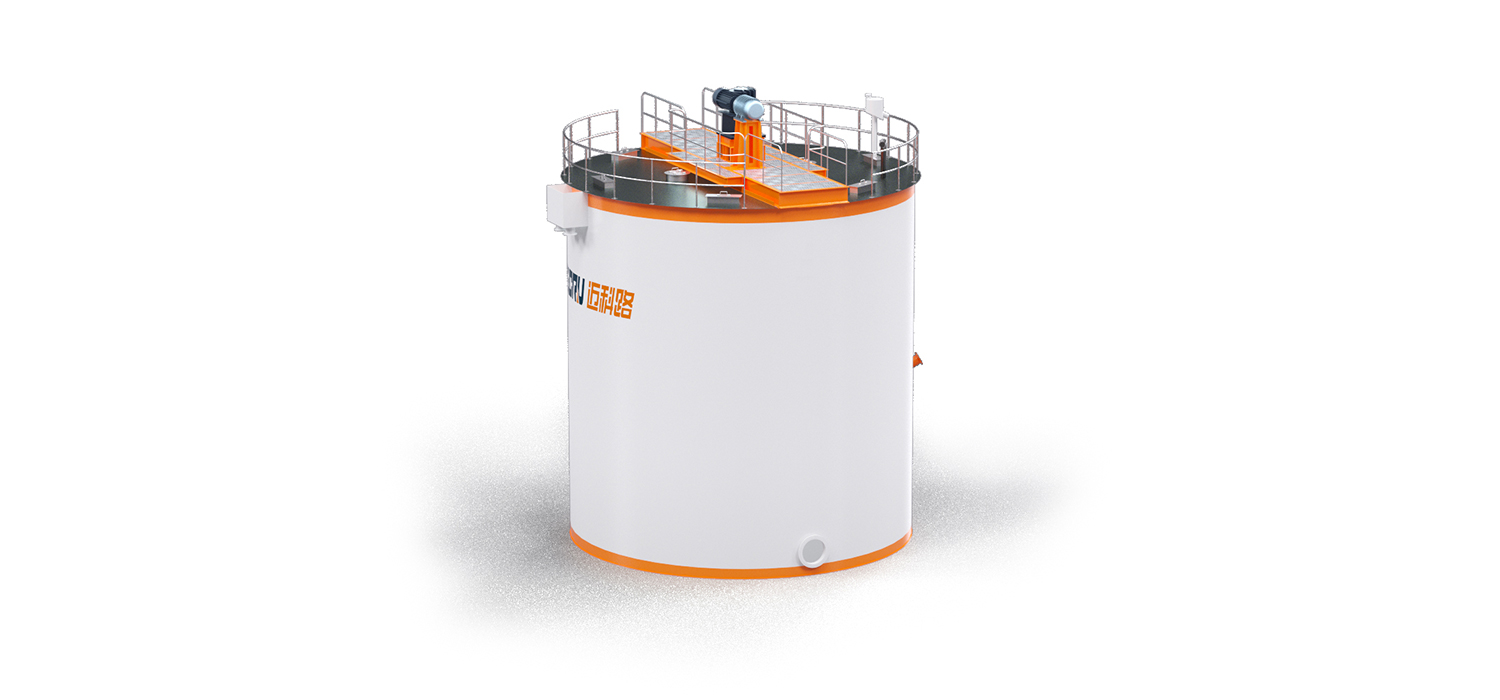

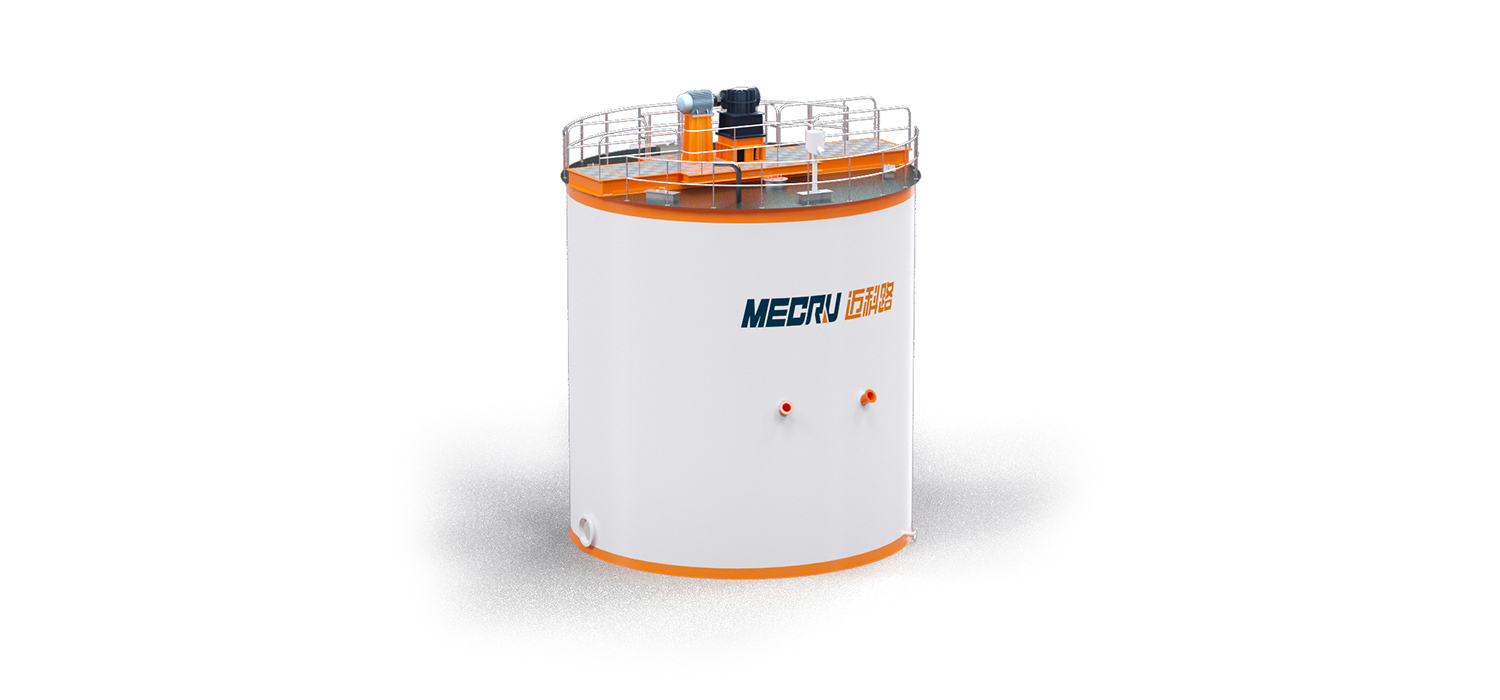

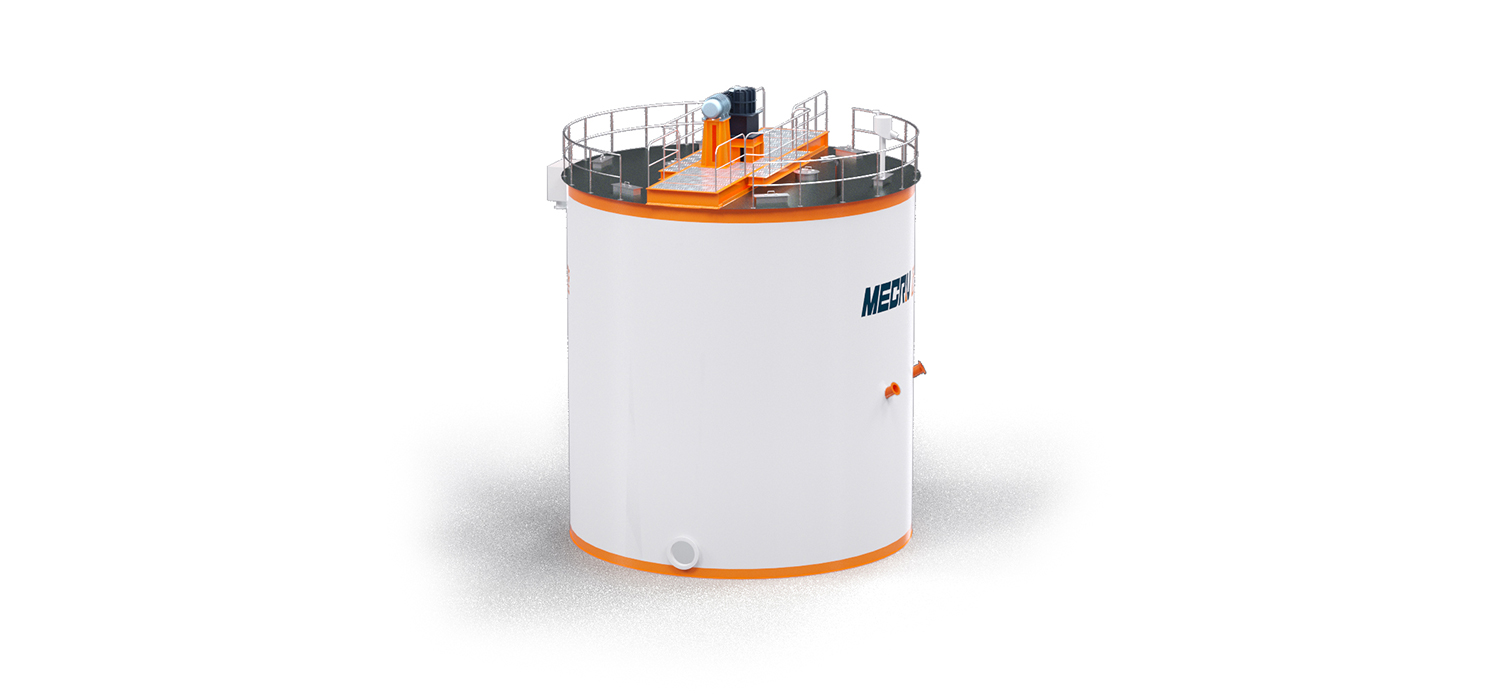

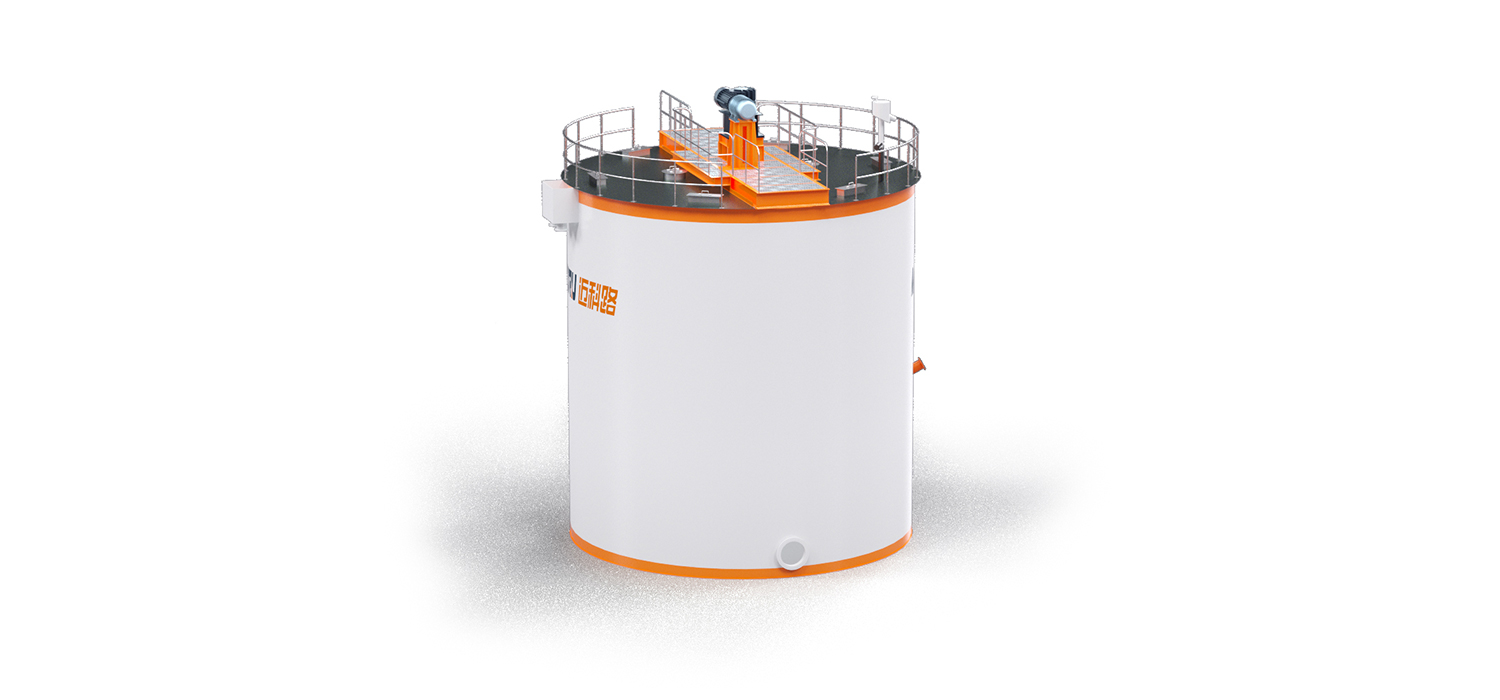

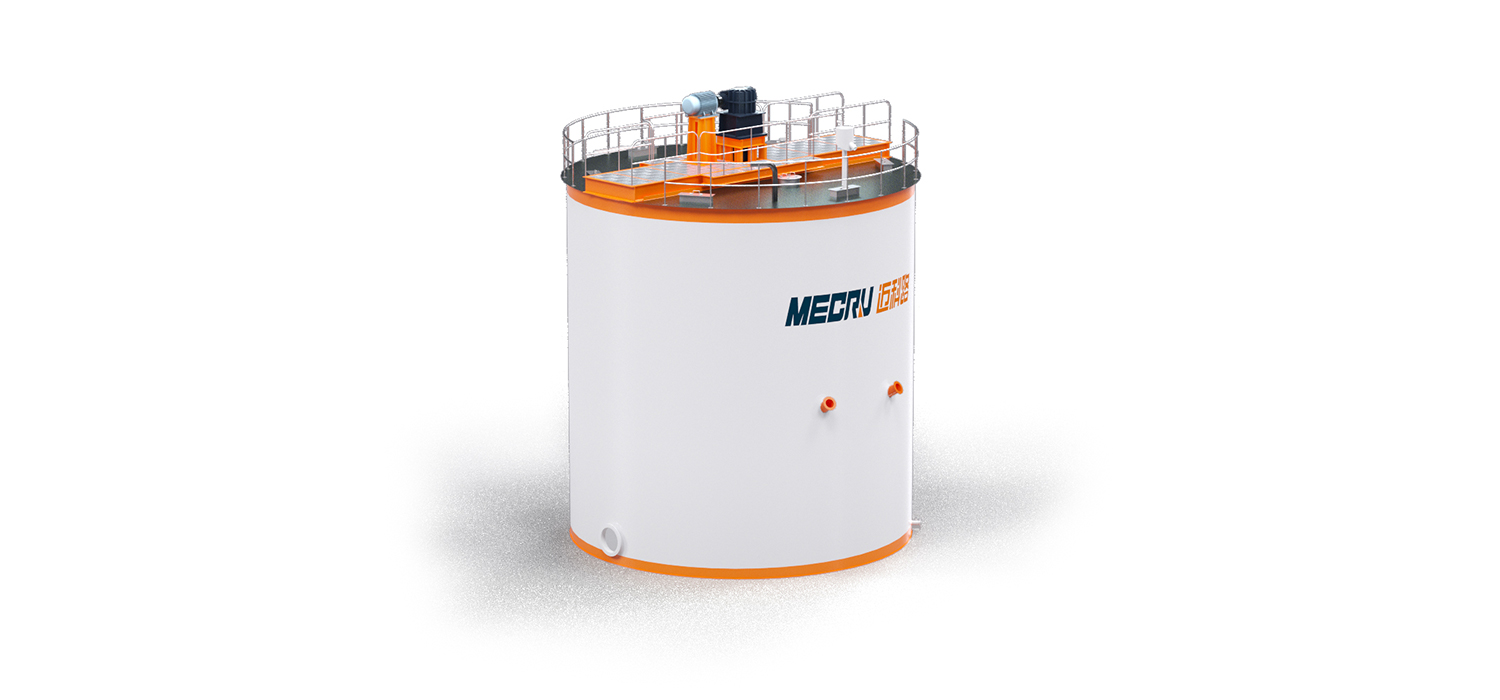

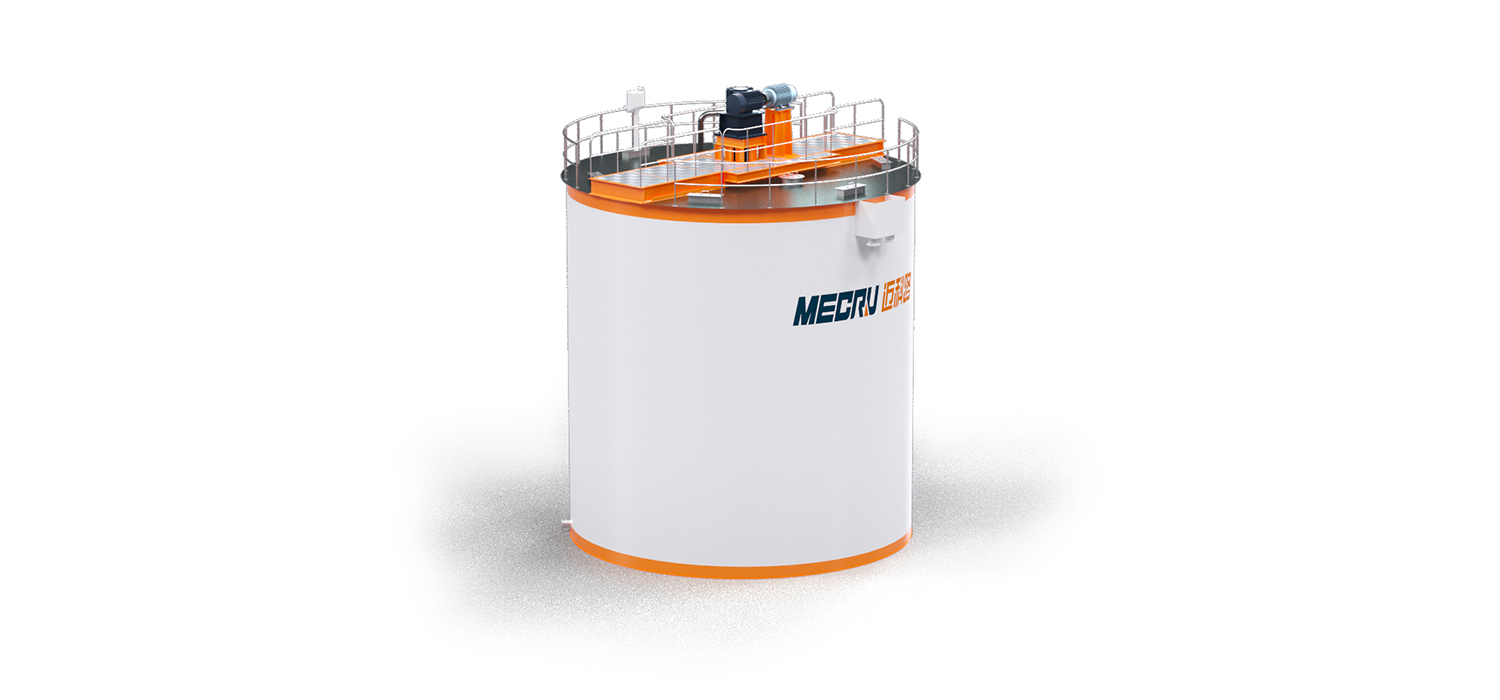

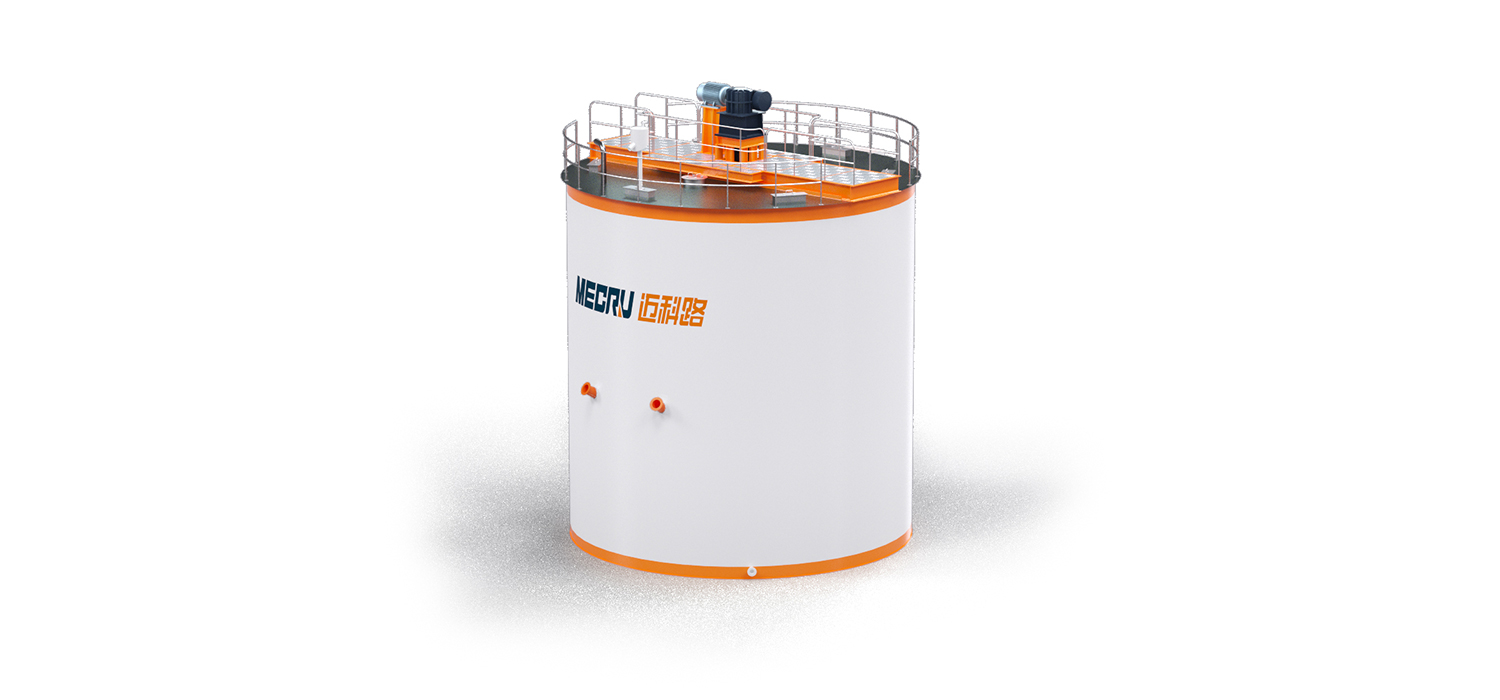

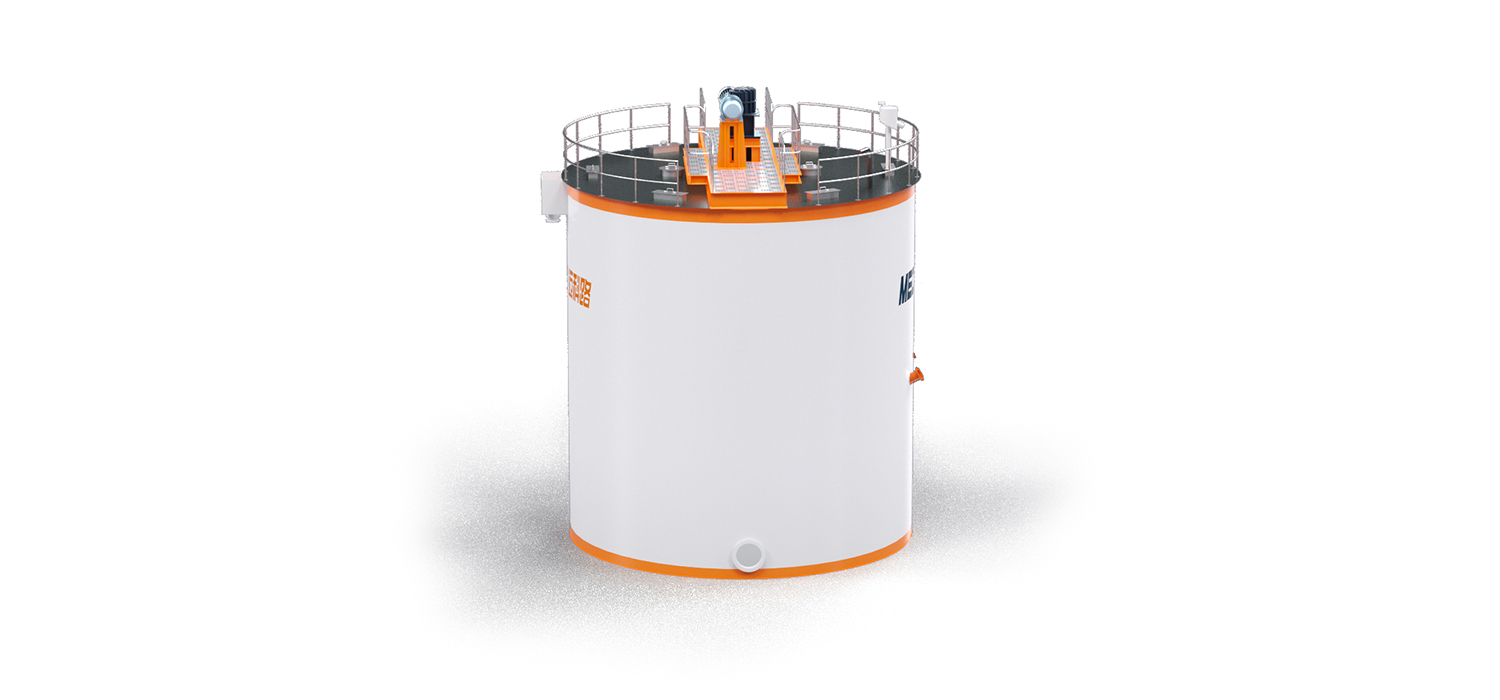

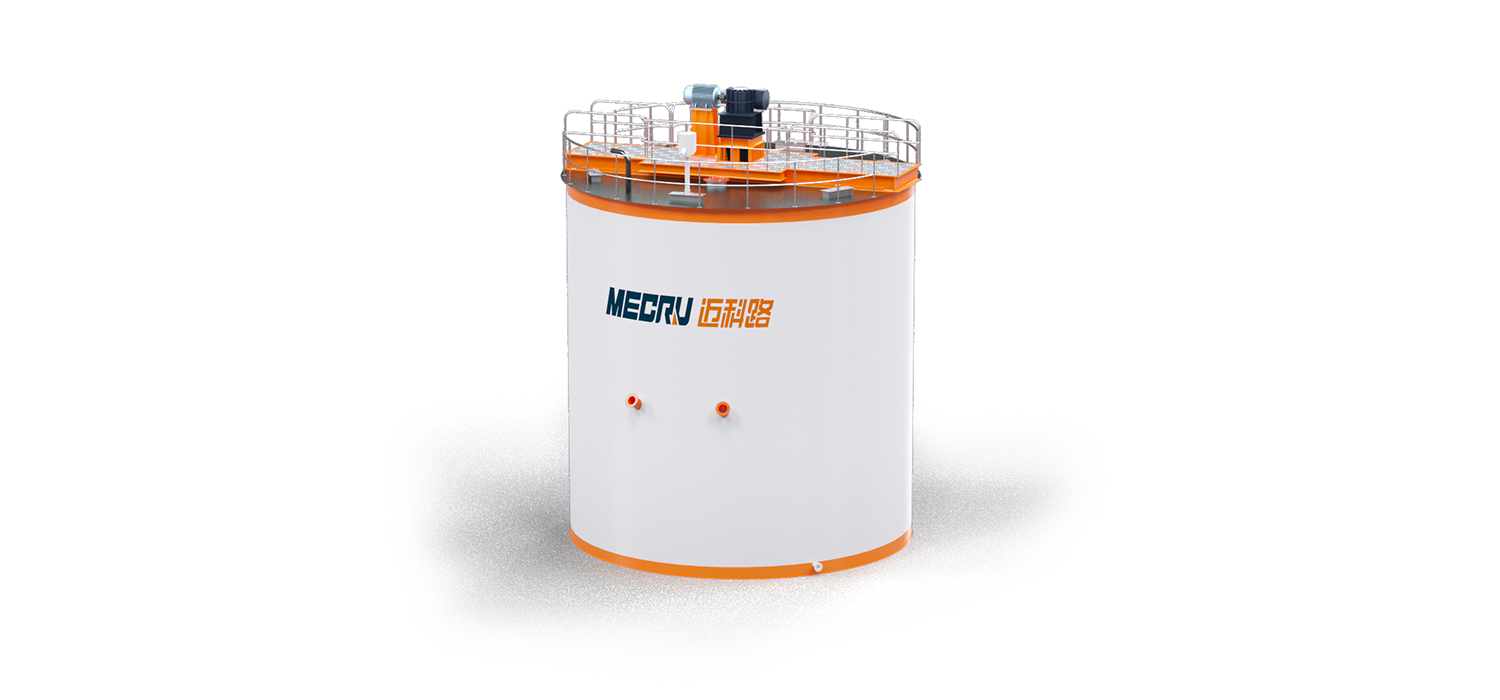

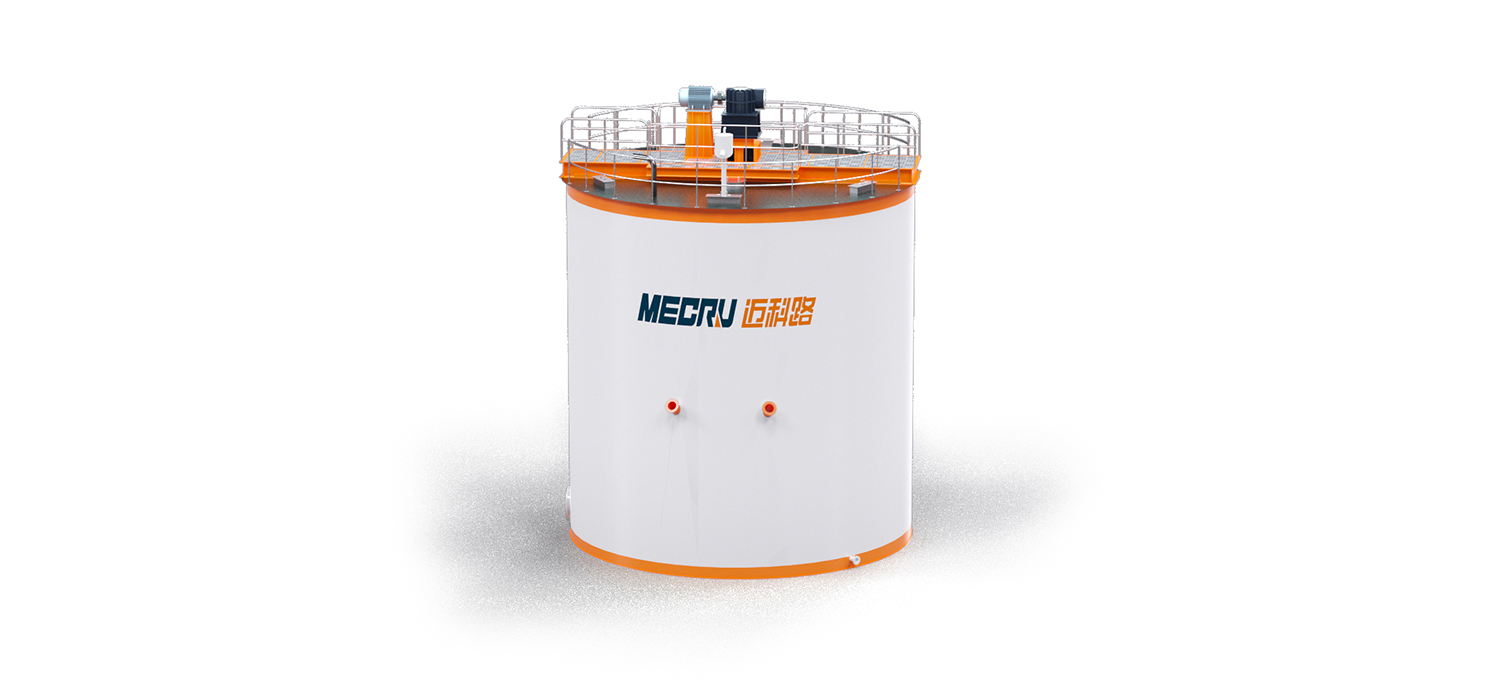

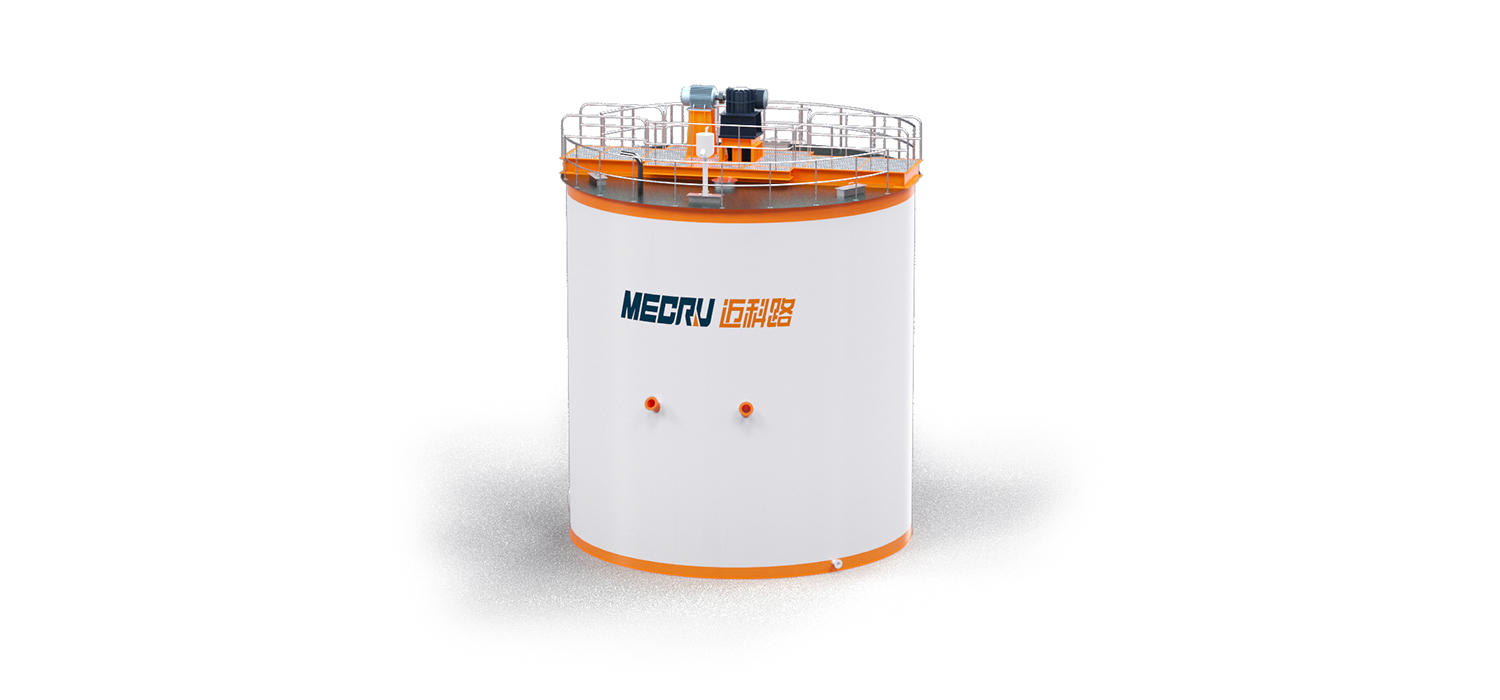

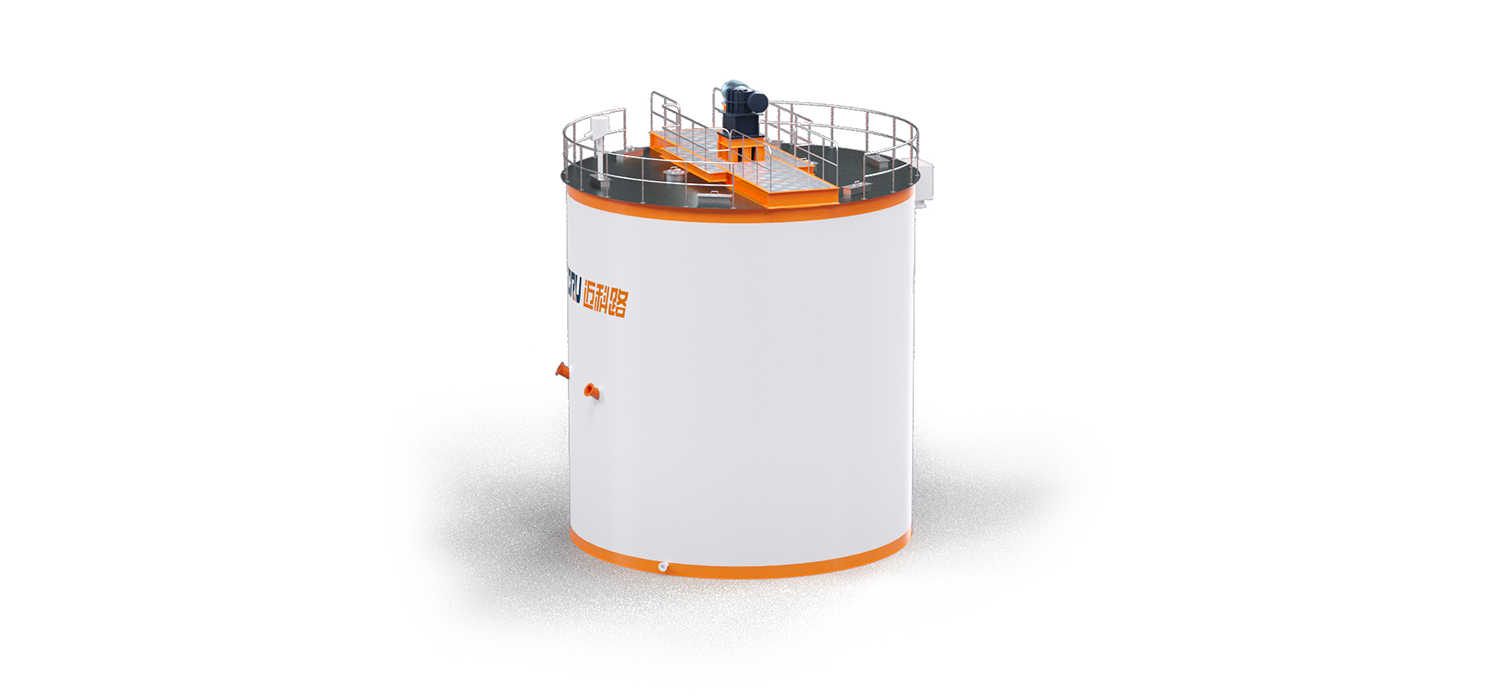

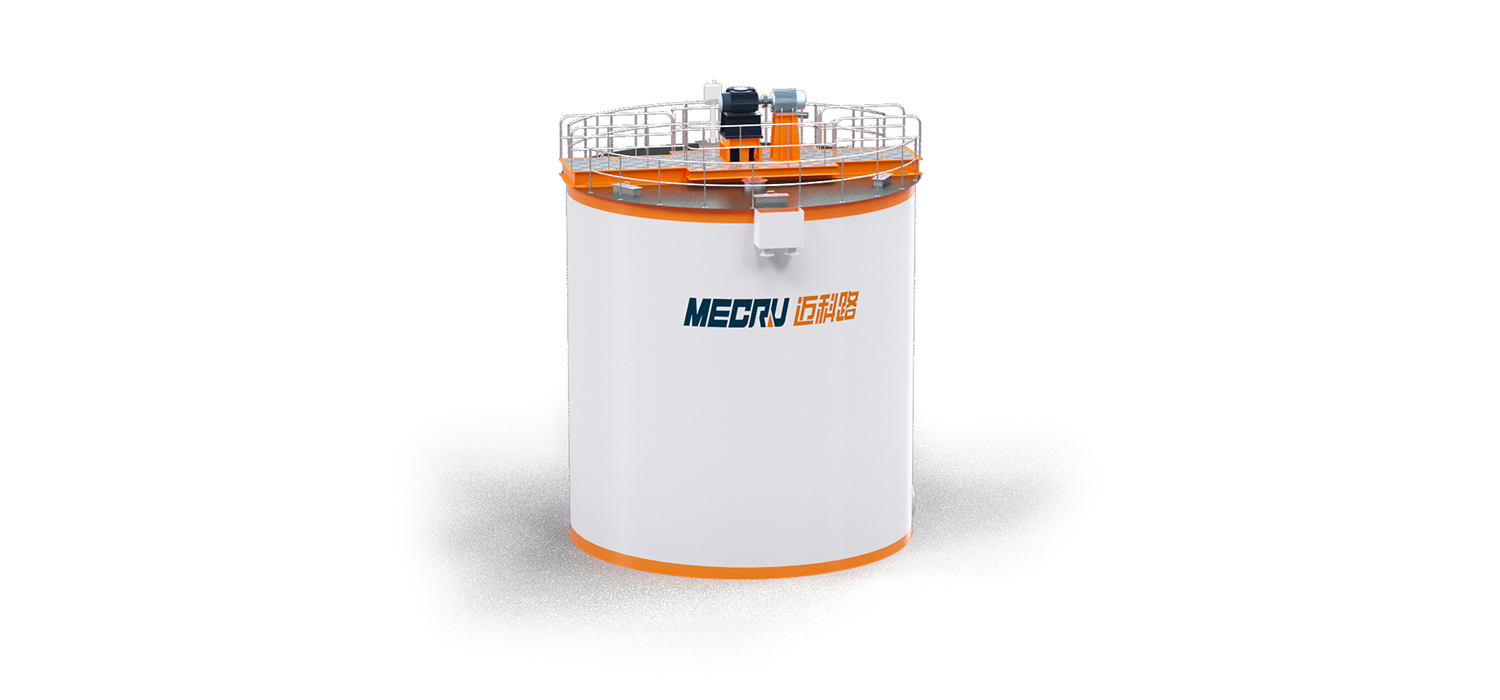

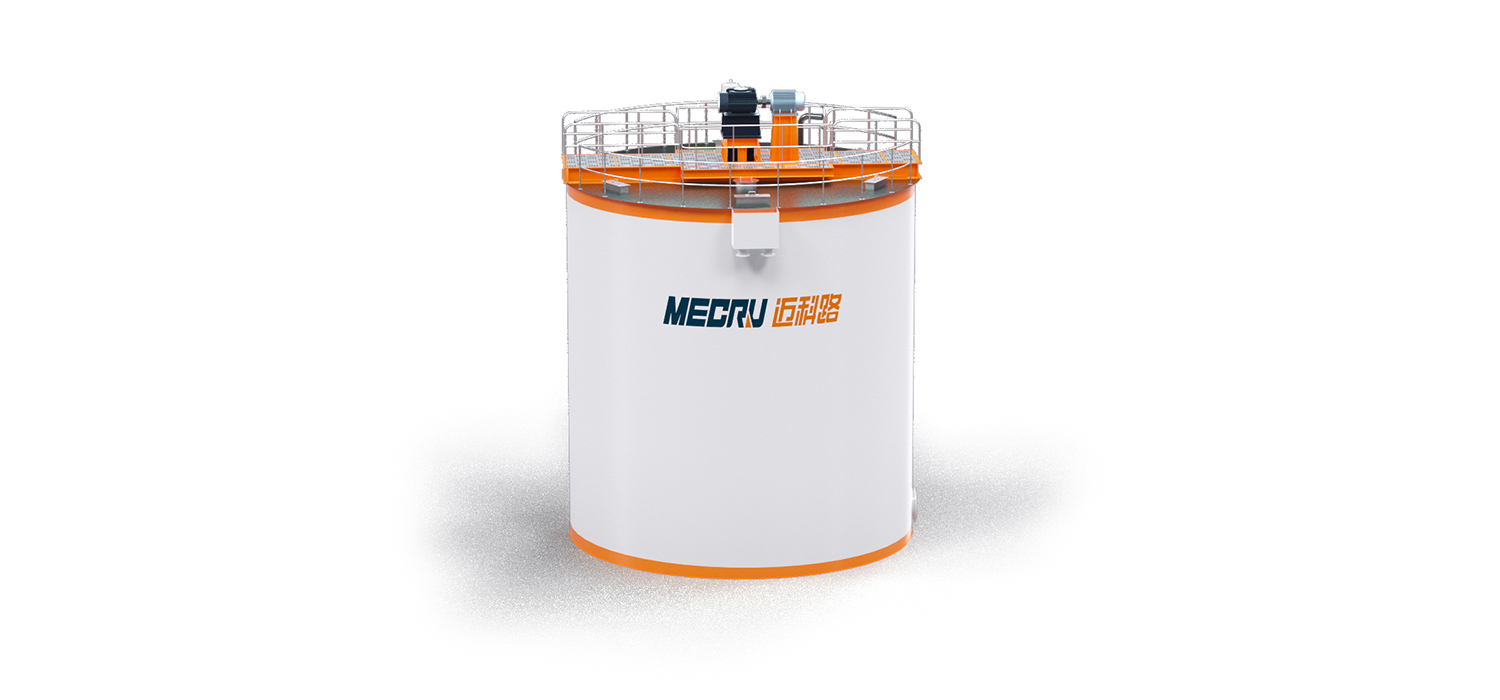

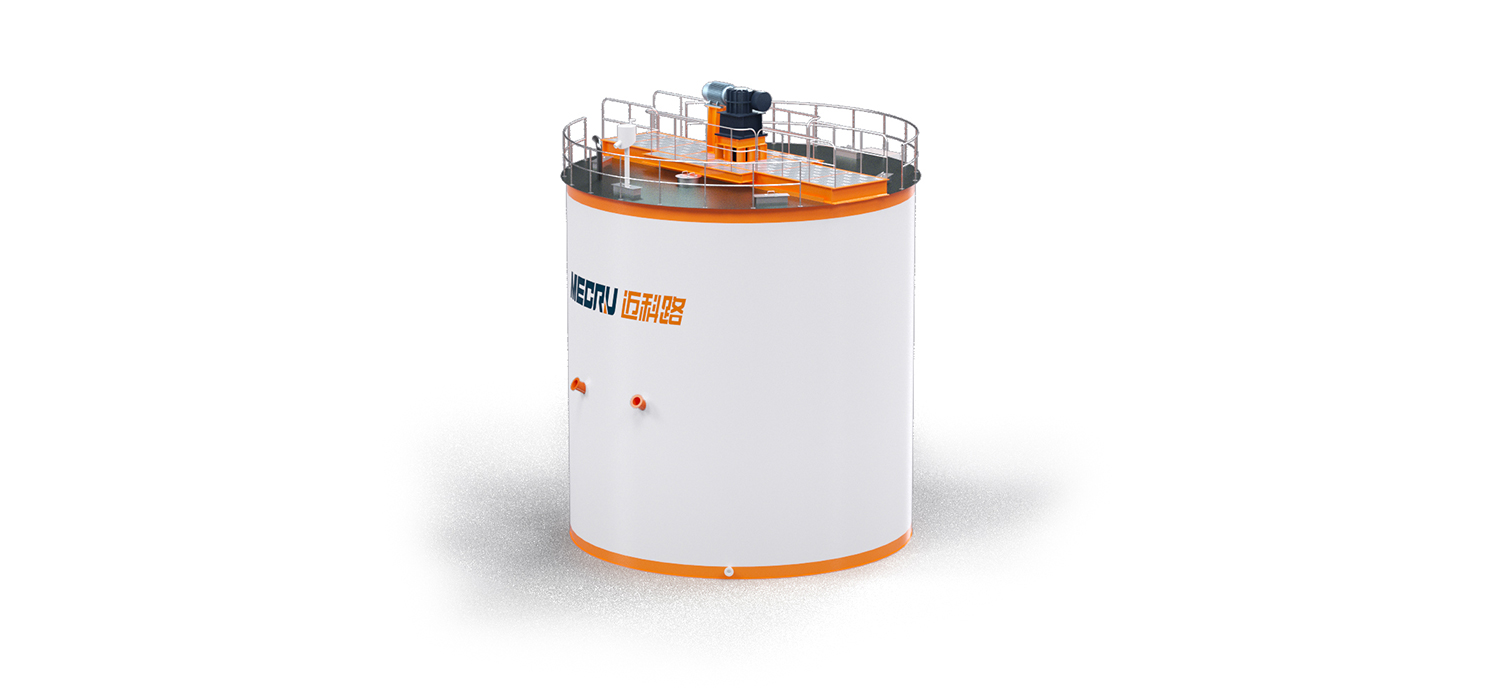

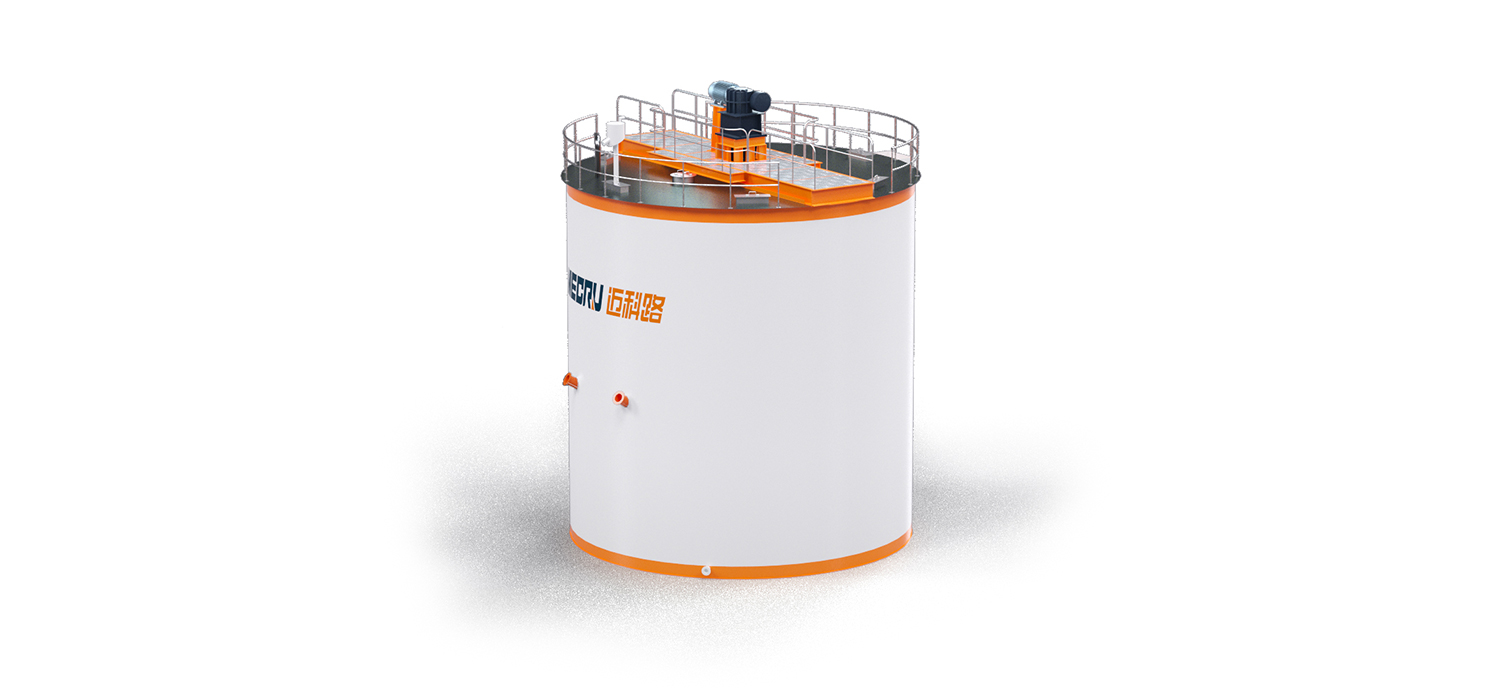

Mouse drag product 360°rotation

Product Advantages

  • The ore flow is stable, the slurry is evenly mixed, and the power consumption is low;

  • The air enters the tank through the transmission hollow shaft, and is stirred by the blades to disperse the air evenly;

  • Compact structure, easy maintenance; The hollow shaft is ventilated to the bottom, and the air enters the tank through it, and the air is evenly dispersed and the bubbles are small;

  • Two new impellers are adopted. The diameter of the impeller of the leaching tank is large, the speed is low, the power consumption of stirring is small, and the wear of charcoal can be reduced;

  • The stirring intensity is moderate, and the concentration and fineness distribution of the pulp in the tank are consistent, which can improve the leaching rate of cyanide and the adsorption rate of carbon; The impeller of the leaching mixing tank is lined with wear-resistant rubber, with low speed and long service life.

Technical Parameters

double-impeller agitating leaching tank main parameters
ModelSpecification mm                    D×HEffective volume m3ImpellerDiameterReducerTankweight                        (kg)Total weight                        (kg)
Roary speed rpmDia. mmFeeding pipe mmDischarging pipemmModelSpeed ratioMotorpowerkw
JX2.0×2.52000×25006529092—Φ133×82—Φ133×8XLD2.2-4-29292.2
2144
JX2.5×3.152500×315013.149352—Φ133×82—Φ133×822423095
JX3.0×3.03000×30001840.8511302—Φ1502—Φ150XLD4-5-3535428024161
JX3×3.153000×315018.934311302—Φ1502—Φ15033314323
JX3.15×3.553150×3550244312602—Φ1502—Φ15033914583
JX3.5×3.53500×3500305213102—Φ1502—Φ150XLD5.5-5-29295.542865025
JX3.5×4.03500×400032.74113102—Φ1502—Φ15046315429
JX3.55×4.03550×400033.64313102—Φ1502—Φ150XLD4-5-3535448605825
JX3.7×4.23700×420038.44213102—Φ1502—Φ150XLD4-5-3543450586153
JX4.0×4.04000×4000383517502—Φ159×82—Φ159×8XLD7.5-7-43437.560567450
JX4.0×4.54000×4500483517502—Φ159×82—Φ159×8XLD7.5-7-43437.561067569
JX4.5×5.04500×500071.5717502—Φ159×82—Φ159×8XLD7.5-7-43437.5750610864
JX5.0×5.65000×5600983120462—Φ159×82—Φ159×8XLD11-8-4747111048314291
JX5.5×6.05500×600011221002—Φ159×82—Φ159×847111420918745
Φ6×6.56000×650017024.923002—Φ168×82—Φ168×8XLD18.5-9-3531.518.51616421006
Φ6.5×76500×70002152324002—Φ168×82—Φ168×8XLD18.5-9-4343221719025567
Φ7.0×7.57000×7500245.42124002—Φ168×82—Φ168×8XLD22-10-4747222209130486
JX7.5×8.07500×8000268.62129002—Φ168×82—Φ168×8XLD22-10-4747222695834365
JX8.0×8.58000×850034216.432002—Φ219×82—Φ219×8XLD22-10-4747303348942468

Note:Any change of technical data shall not be advised additionally.

Application Areas

  • Platinum hydrometallurgy

    Platinum hydrometallurgy

  • Gold hydrometallurgy

    Gold hydrometallurgy

  • Silver hydrometallurgy

    Silver hydrometallurgy

  • Rhodium hydrometallurgy

    Rhodium hydrometallurgy

Prev
Next

Agitating leaching tank

Agitating leaching tank

Work Principle

Under the action of dragging and stirring by the double impellers, the pulp flows from top to bottom in the center, diffuses through the surrounding damping plate, feeds air at the lower end of the shaft, mixes with the pulp and circulates upwards to form a uniform suspension mixture .
