30-60mm
Feeding size
60-580t/h
Capacity
Product profile

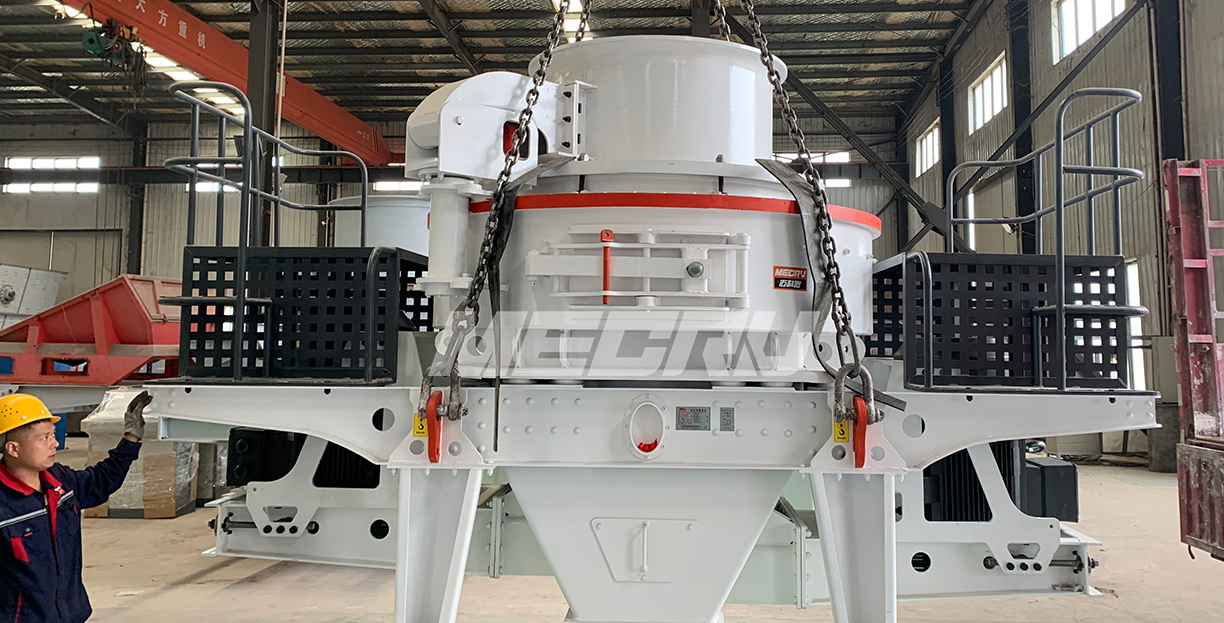

Mecru Vertical Shaft Impact Sand Making Machine (VSI Crusher) integrates three functions of crushing, sand making and shaping. The sand making machine is widely used in metal and non-metal ores, building materials, artificial sand and various metallurgical slag and other materials. The finished sand has good shape, reasonable gradation and stable output. The impact angle of materials in the crushing chamber of Mecru's VSI sand making machine has been specially designed to reduce the wear of wearing parts, which can effectively reduce the cost of equipment use.
Product Advantages
One machine is multi-purpose, using a combination of multiple feeding methods and multiple crushing chamber types, combining the "stone hitting stone" and "stone hitting iron" crushing principles, and enabling the two crusher modes to be flexibly converted to each other. Greatly improve the operating efficiency of crushing sand.
The use of advanced hydraulic cover opening device greatly simplifies the daily mechanical inspection and maintenance process. It is also equipped with an automatic detection and alarm device, which is more stable and safe in operation.
The whole machine adopts high-quality materials and advanced process technology to forge the equipment, which greatly improves the internal quality and appearance quality of the equipment. While reducing the wear rate and failure rate, it can increase the output by 30%.
The product is cubic, with low content of needles and little iron pollution.
Technical Parameters
| Model | Max feeder size(mm) | Process ablity(t/h) | Speed of main shaft(r/min) | power(kw) | ||
| Hard material | Soft material | Making sand amount | traffic shaping | |||
| CI7615 | ≤30 | ≤35 | 70-140 | 150-280 | 1700-1900 | 110-150 |
| CI8522 | ≤35 | ≤45 | 130-200 | 220-300 | 1500-1700 | 180-264 |
| CI9532 | ≤40 | ≤50 | 190-280 | 320-360 | 1100-1400 | 320-400 |
| CI1145 | ≤45 | ≤55 | 260-350 | 420-460 | 1000-1300 | 400-500 |
| CI1263 | ≤50 | ≤60 | 450-490 | 500-580 | 900-1200 | 315x2 |
| Thin oil lubrication station | Double oil pump motor power | 2x0.25kw | ||||
| Safty protection | Double complementary oil supply;Intelligent oil supply short circuit automatic stop;Intelligent control of water cooling;Winter motor heating starts. | |||||
| Fuel tank heating power | 2kw | |||||
| Dimensions (L x W x H)(mm) | 825x530x1280 | |||||
Note：Any change of technical data shall not be advised additionally.
Application Areas

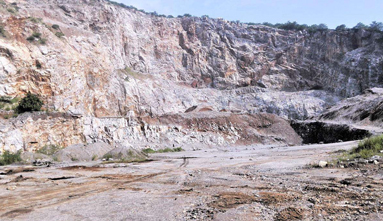

Mines and Quarries

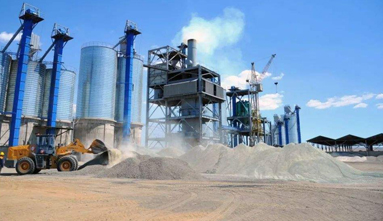

Cement Production
Building Construction
Road Construction

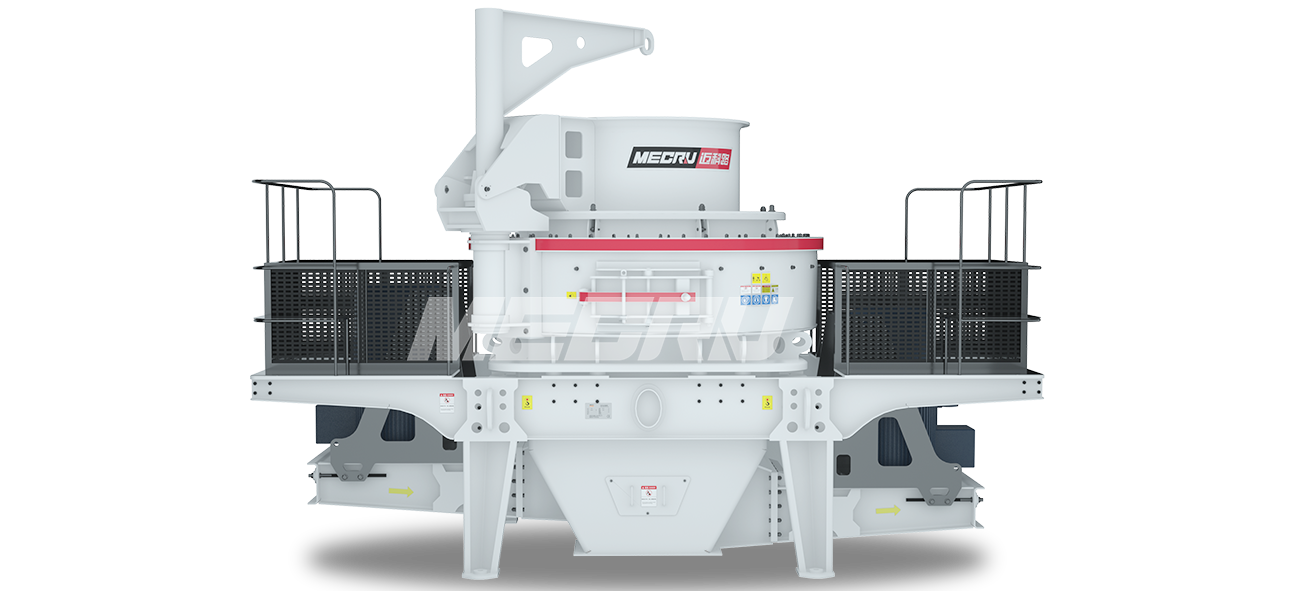

VSI Sand Making Machine

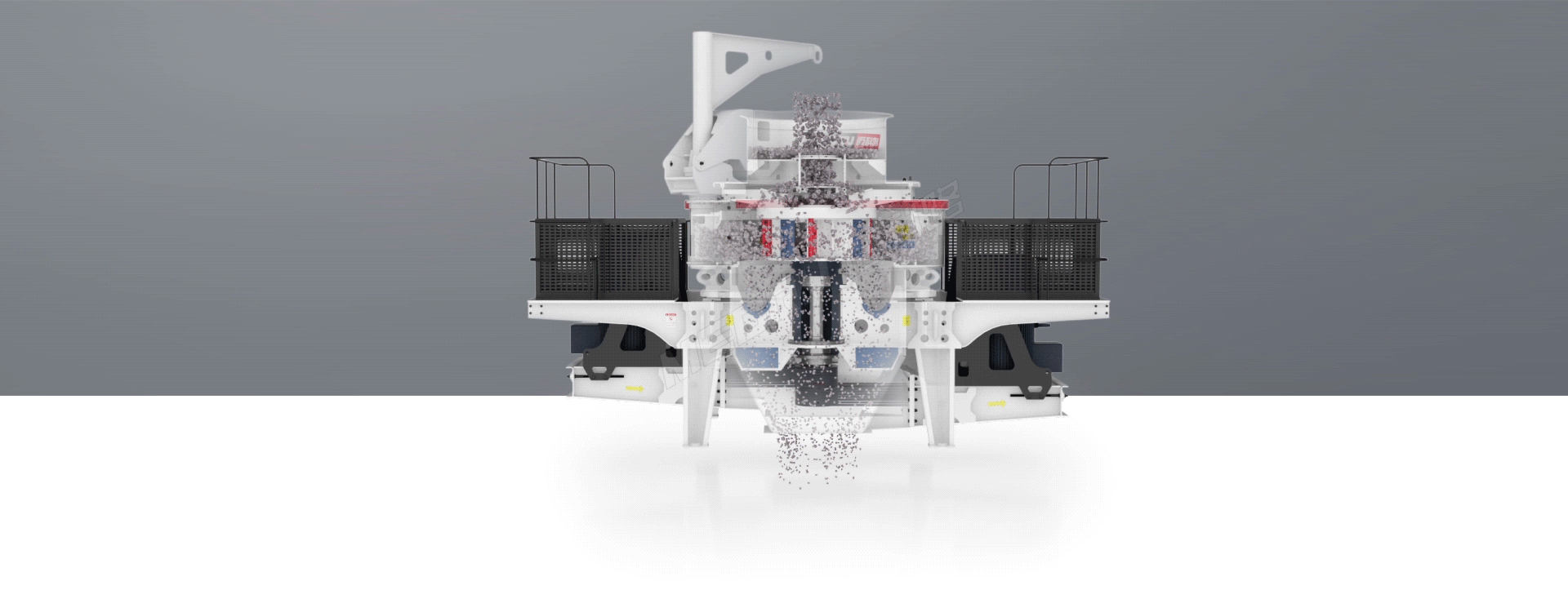

Work Principle
The stone falls directly from the upper part of the machine into the high-speed rotating turntable. Under the action of high-speed centrifugal force, it shunts another part of the target stone around the turntable in an umbrella shape to produce high-speed impact and high-density crushing. After the stones hit each other, And it will form a vortex motion between the turntable and the casing, causing multiple mutual striking, friction, and crushing, and it will be discharged directly from the lower part. Multiple closed loops are formed and controlled by the screening equipment to achieve the required particle size.

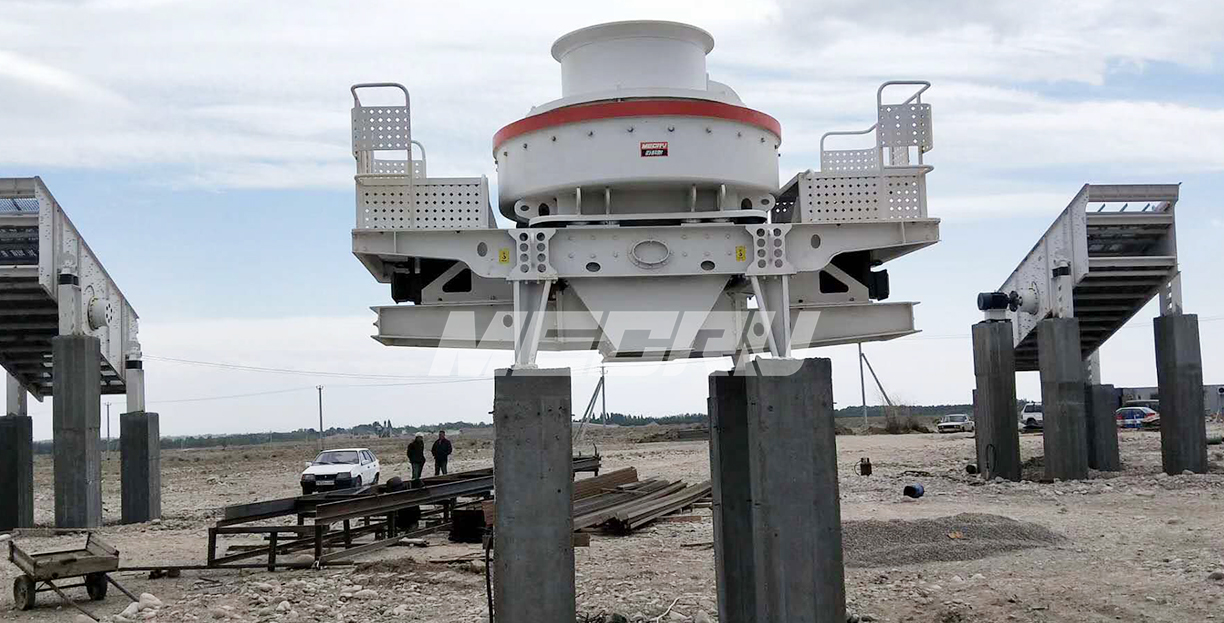

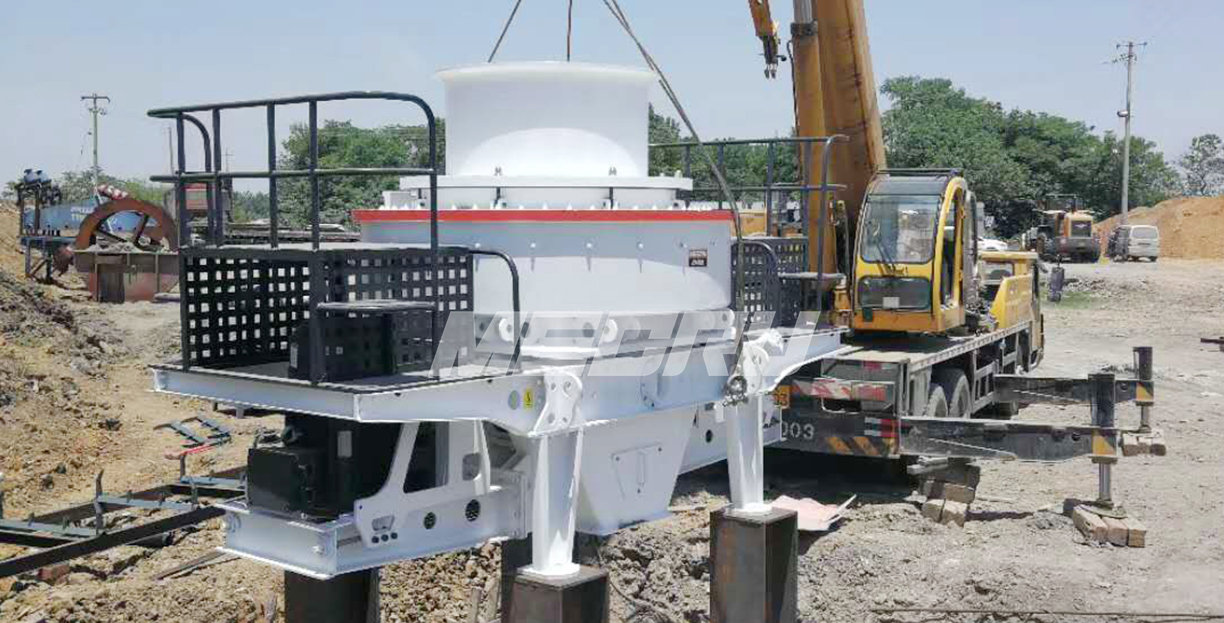

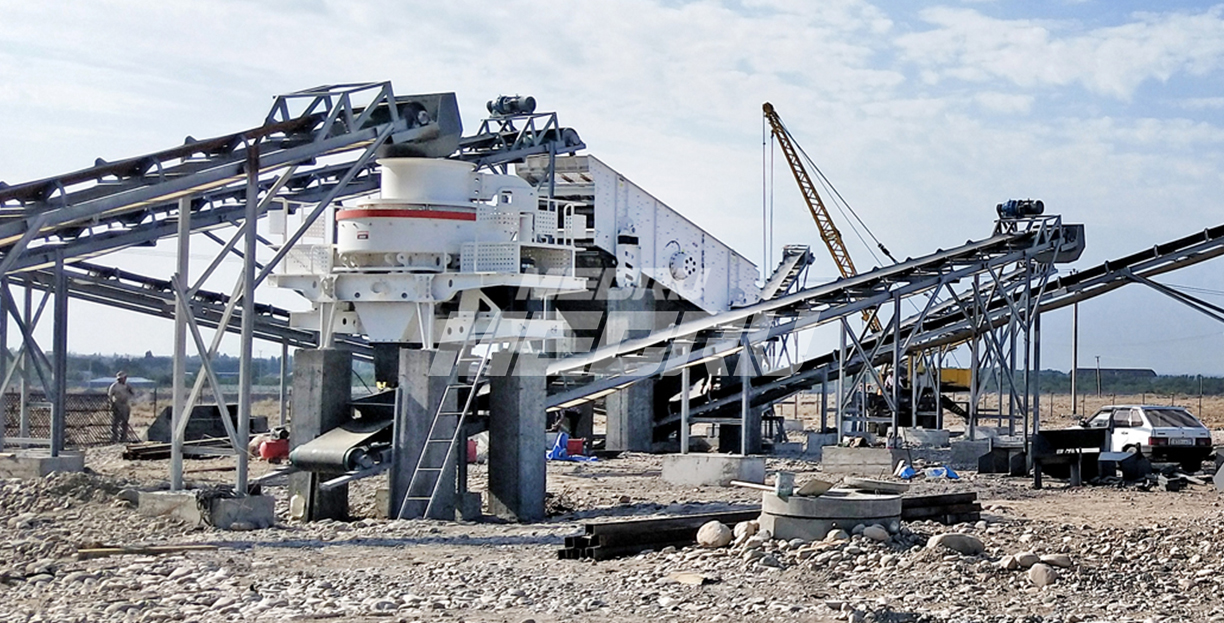

Customer Case

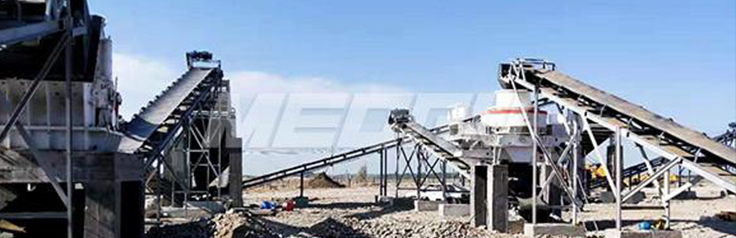

The project is located in a mining area in Guizhou. With the development of national infrastructure, mechanism sand has ...
Read more

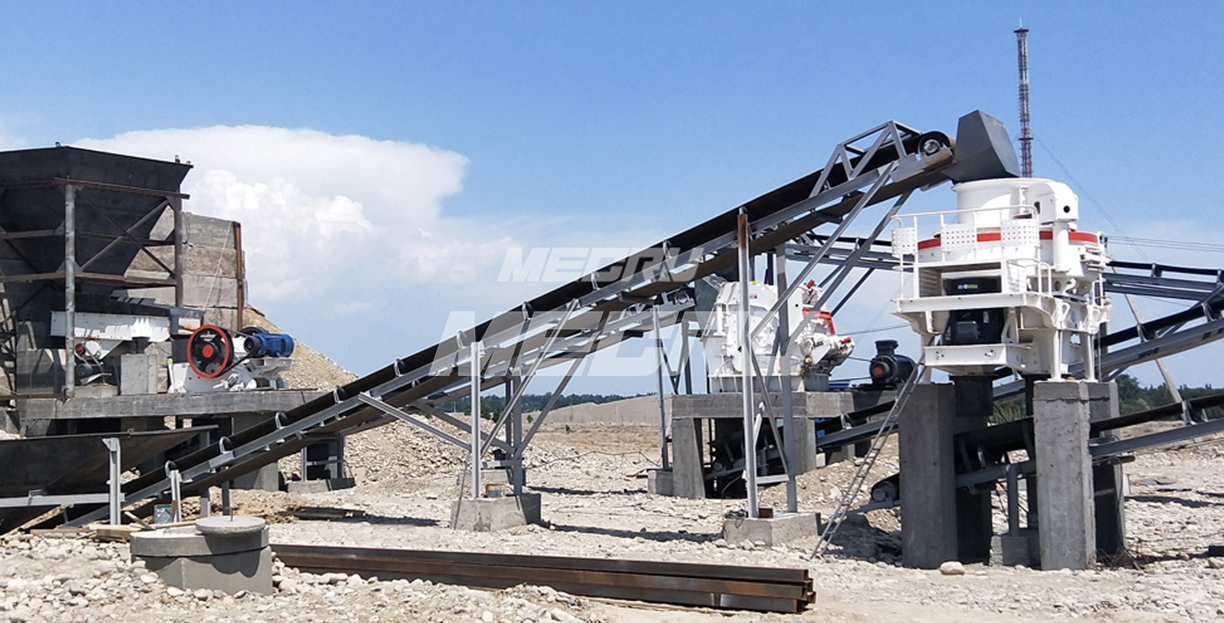

River pebbles is a common mechanism sand project. Because the acquisition of river pebble raw materials is relatively si...
Read more
